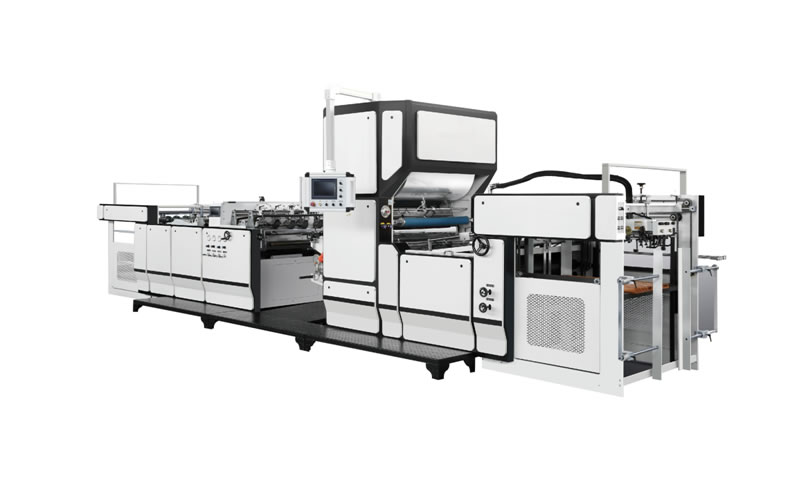

FM-E1080 Fully Automatic High Speed Vertical Laminating Machine (Chain knife)

  • Category Name: Fully automatic laminating machine
  • E-mail: evawong@aliyun.com
  • Telephone: +86-577-65171599
1. Non-stop feeder
2. Dust remover (optional)
3. Vertical laminator
4. Chain knife and round knife slitting unit
5. Automatic collector

Usage:
FM-E1080 fully Automatic High Speed Vertical High-precision and multi-duty laminator as a professional equipment used for plastic film laminating on the surface of paper printed matter. Widely applicable for laminating in packaging, paper box, books, magazines, calendars, and commercial cards fields, Improving the printing matter grades, and achieve the purpose of dustproof, waterproof, oil proof. it’s the best choice for printing and laminating enterprises of all scales.

Machine brief:
FM-E1080 fully Automatic high speed Vertical High-precision and multi-duty laminator is a newly developed product geared to the market demand, which is specially designed for water-based and dry laminating glue. The main unit is applied in cementing, drying and laminating, easy to operate. It can be used for multiple purpose, such as oil-type, water-based, and dry-type lamination. It is a new style film laminating machine. The chain knife cutting device (optional) specially for cutting thin paper which laminated for PTE, PVC film, also, it is suitable for cutting various thin films.

Machine each part introduction:
1. Automatic paper feeding machine edge landing machine
It adopts a feeder head for high-speed printer and has stable paper feed and accurate and simple operation; The automatic paper feeding device has the function of pre-piling paper and feeding paper continuously to guarantee continuous and stable laminating process, save time and improve productivity. The edge landing action controlled by servo motor make sure the edge precision is less than or equal to ±2mm; the automatic paper feeding device has the restriction in maximal and minimal paper size. Except the paper width is restricted, the length ratio of maximal paper and minimal is 3:1.
.



2. Powder removing machine unit (Optional)
The laminated powder removing unit adopts dry-type powder removal, which consists of a bristle brush wheel for sweeping and absorbing powder and a heating press roll for removing powder. Powder action after the completion of edge landing action, to ensure that the paper feeding belt and paper feeding system in the process of removing powder no deviation and stable.


3. The mainframe consists of the gluing part, the drying part and the laminating part.
The gluing part mainly guarantees the glue evenness. It is gluing through the chrome roller running; the coating precision is normally controlled within 0.008mm; save more glue and gluing speed depend on the gluing precision, higher gluing precision with less glue and rapid gluing.


The drying part adopts a large-diameter steel roller (Φ820) with Quartz transparent tube, the temperature is controlled within 80, it adopts strong hot air circulation to reach the aim of rapid drying. Meanwhile, it guarantees the glue film is not overheated and deformed or broken.
The laminating part adopts electromagnetic heating by the hot-press roller which with the advantages of rapid heating, energy saving and environmental protection. Its diameter is Φ380mm, the inner diameter of rubber pressure roller cylinder is enlarged to 63mm, the total maximal pressure reach to10T, to ensure the products’ quality with high speed laminating processing.
Automatic device for glue roller boosting and releasing pressure, it is convenient to control pressure, and simple to operation. The mainframe controlling system adopts touch screen, simple operation and strong stability.


4. Paper cutter (paper cutter and paper puller)
The paper cutter adopts a round-cutter device with convenient adjustment. It can guarantee effective paper cutting for paper more than 105g. The cutter is provided with the chain cutting system which specially aims at PET and PVC film cutting, replaces the original round-cut film system, can effectively cut any film straightly, so that the paper delivering smoothly and simple operate and adjust. PET film with adhesion strength and with higher anti-breaking performance than common film, chain knife easy to cutting the PET film, so favorable for post-processing, greatly reduces labor, time and abnormal waste, therefore reduces cost, it is a good helper for the paper cutter. The chain device controlled by servo motor independently, it is simple operation and maintenance. The cutter machine is provided with a thin-paper anti-curling device. The cutter adopts frequency control could achieve synchronous regulation with mainframe.






5. paper collecting machine
The automatic paper collecting machine of the laminating machine has the function of collecting paper without shutdown; the collecting size is matched with the paper feeder.


Technical parameters:

Type

FM-1080E

FM-1080E (Clear powder)

Max. paper size

1080×1100mm

1080×1100mm

Min. paper size

360×290mm

360×290mm

Paper weight

80-500g/㎡

80-500g/㎡

Overlap precision

≤±2mm

≤±2mm

Working speed

10-80m/min depend on paper

10-80m/min

Machine size

84000*2200*2600mm

102000*2200*2600mm

Machine weight

8000kg

8500kg

Machine start working only 3 minutes.

Remark: accept customization of equipment in various specifications

Processing line:


paper feeding unit, Edge landing unit, powder removing unit(optional), hot-press roller (electromagnetic heating), laminating mainframe, paper cutter, paper collecting machine

Machine image:
Pls refer to the link of the video. https://youtu.be/mmihOx1LagA

Machine function brief:
This feeder head also for high-speed printer with stable paper feed and keep accurate.
Paper feeding and collecting function without shutdown, effectively shorten the time of working.
Edge landing unit with servo control guarantees accurate and reliable edge landing.
Adopt coating by the chrome treatment roller, save the glue quantity and have evenly coating.
Strong hot air circulation could rapid drying
Anti-crimping device is suitable for thin-paper coating.
The heating steel roller adopts the electromagnetic heating system with rapid heating, energy saving and environmental protection.
Human-computer interface with touch screen, convenient and individualized
Industrial design, beautiful and elegant appearance, develop its own features

Main configuration list

No.

Name

Brand

Origin

1

main motor

Bolilai

Zhejiang

2

Feeder

Runze

Zhuji

3

vacuum pump

Tongyou

Jiangsu

4

bear

NSK

Japan

5

optical fiber sensor

Omron

Japan

6

relay

Schneider

France

7

green flat button

Schneider

France

8

red flat button

Schneider

France

9

scram button

Schneider

France

10

rotary knob

Schneider

France

11

AC contactor

Schneider

France

12

servo motor

Delta

Taiwan

13

servo driver

Delta

Taiwan

14

servo reduction gear

Delta

Taiwan

15

switch power

Delta

Taiwan

16

temperature module

Delta

Taiwan

17

programmable logic controller

Delta

Taiwan

18

brake resistance

Delta

Taiwan

19

cylinder

AIRTAC

Shanghai

20

electromagnetic valve

AIRTAC

Shanghai

21

optoelectronic switch

Teach

Shanghai

22

touch screen

Xiankong

Shenzhen

23

transducer

Delta

Taiwan

24

breaker

CHNT

Wenzhou

25

electronic counter

Dahua

Wenzhou

26

thermal overload relay

Anderle

Wenzhou

27

hydraulic pump

Tiandi Hydraulic

Ningbo

28

chain

Sieling

Hangzhou

29

radiated dragon pipe

Longhui

Wenzhou

30

conveyer belt

Hulong

Wenzhou

31

one-way pneumatic diaphragm pump

FAZER

Wenzhou

32

draught fan

Yinniu

Taizhou

33

oil pipeline

Huilong

Hunan

34

electric thermocouple

Diqi

Shanghai

35

encoder

Omron

Japan

36

rolling motor

Shanghe

Shanghai

37

pressure gage

Heag

Hangzhou

38

amplifier

Laoyice

Germany

39

optical fiber

Omron

Japan

40

chain knife servo

Weikeda

Shenzhen

41

chain touch screen

Weinview

Taiwan

The above configuration is subject to change without prior notice

Machine details:



Samples:




Enterprise:



Warranty:
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine’s quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty. Wages: 80.00USD per day!
